Automate Your Premade
Pouch Packaging.
Maximize production up to 240 bags/min. Perfectly handle zipper pouches and doypacks.
WHY CHOOSE US
20+
Years Mfg
80+
Patents
60+
Countries
CE
Certified
Certification
Turnkey Dosing Integration
We seamlessly integrate world-class dosing systems to handle any product consistency with absolute precision.
Servo Auger Filler
For non-free flowing powders like milk powder, flour, spices, and coffee powder.
Multi-Head Weigher
For solid granules like nuts, candy, pet food, frozen foods, and hardware parts.
Piston / Liquid Pump
For liquids and thick pastes like ketchup, mayonnaise, shampoo, and detergent.
1
2
3
4
5
6
7
8
9
10
11
12

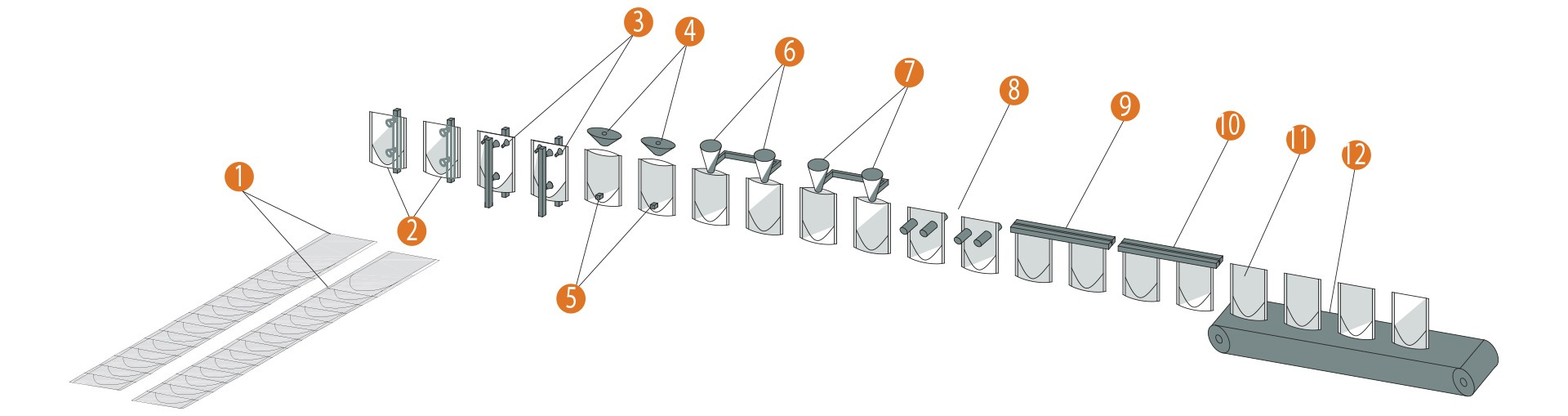

(1) Pouch Feeding Conveyor
(2) Filp-Out Pouch-Picking
(3) Pouch Opening
(4) Air Flushing
(5) Photocell
(6) Filling I
(7) Filling II
(8) Pouch Stretching
(9) Heat Sealing
(10) Cool Sealing
(11) Finished Product
(12) Outlet
Precision 8-Station Working Process
How the SG Series automates your packaging flawlessly.
1
Bag Feeding
Auto pick-up from magazine
2
Date Coding
Ribbon or inkjet printing
3
Zipper Opening
Specialized zip-open claws
4
Bag Opening
Top and bottom opening
5
Filling 1
First stage dosing
6
Filling 2
Secondary dosing & settling
7
Heat Sealing
Airtight top heat seal
8
Forming
Cold sealing and discharge
No Bag, No Fill
Smart detection system. If the pouch doesn't open properly, the machine will not drop the material, saving your expensive product and preventing mess.
One-Touch Adjustment
Motorized gripper adjustment. Change from a 100mm wide bag to a 200mm wide bag in seconds via the touch screen. No manual cranking needed.
Easy Washdown
Constructed with high-grade SUS304/316L stainless steel. Designed for quick cleaning, ideal for strict food and pharma hygiene standards.
Bag shapes suitable for machines
❮ Swipe image to switch models ❯

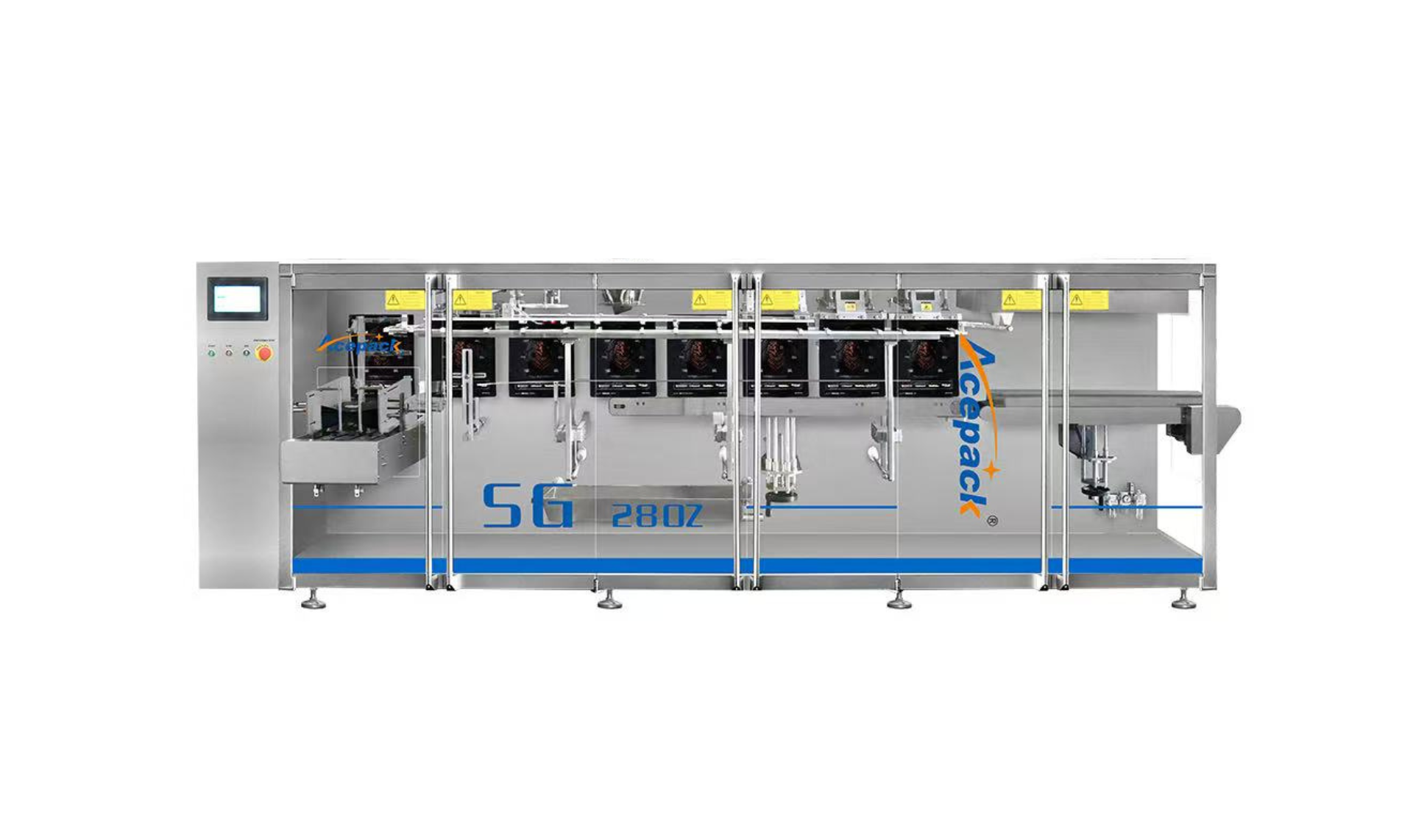

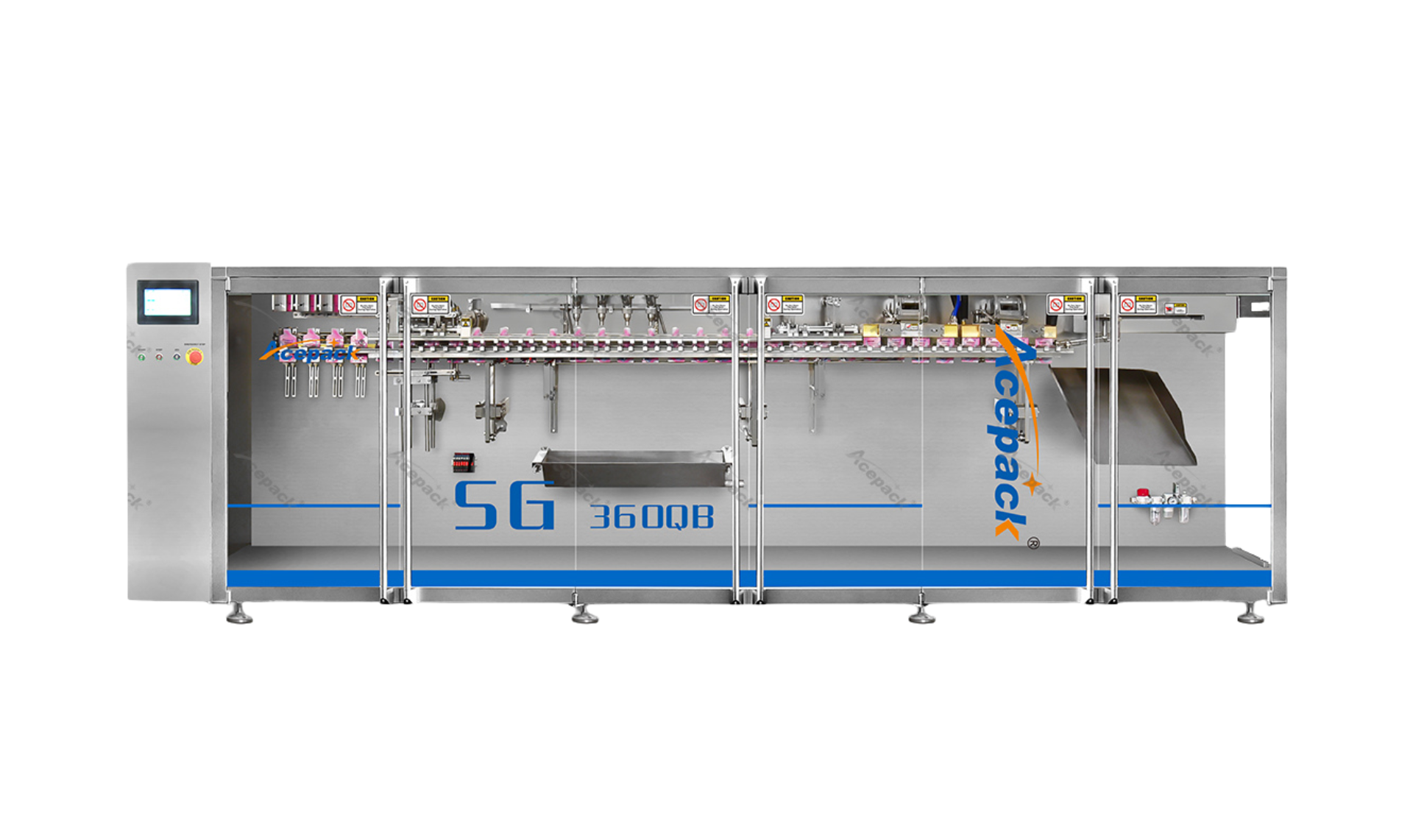

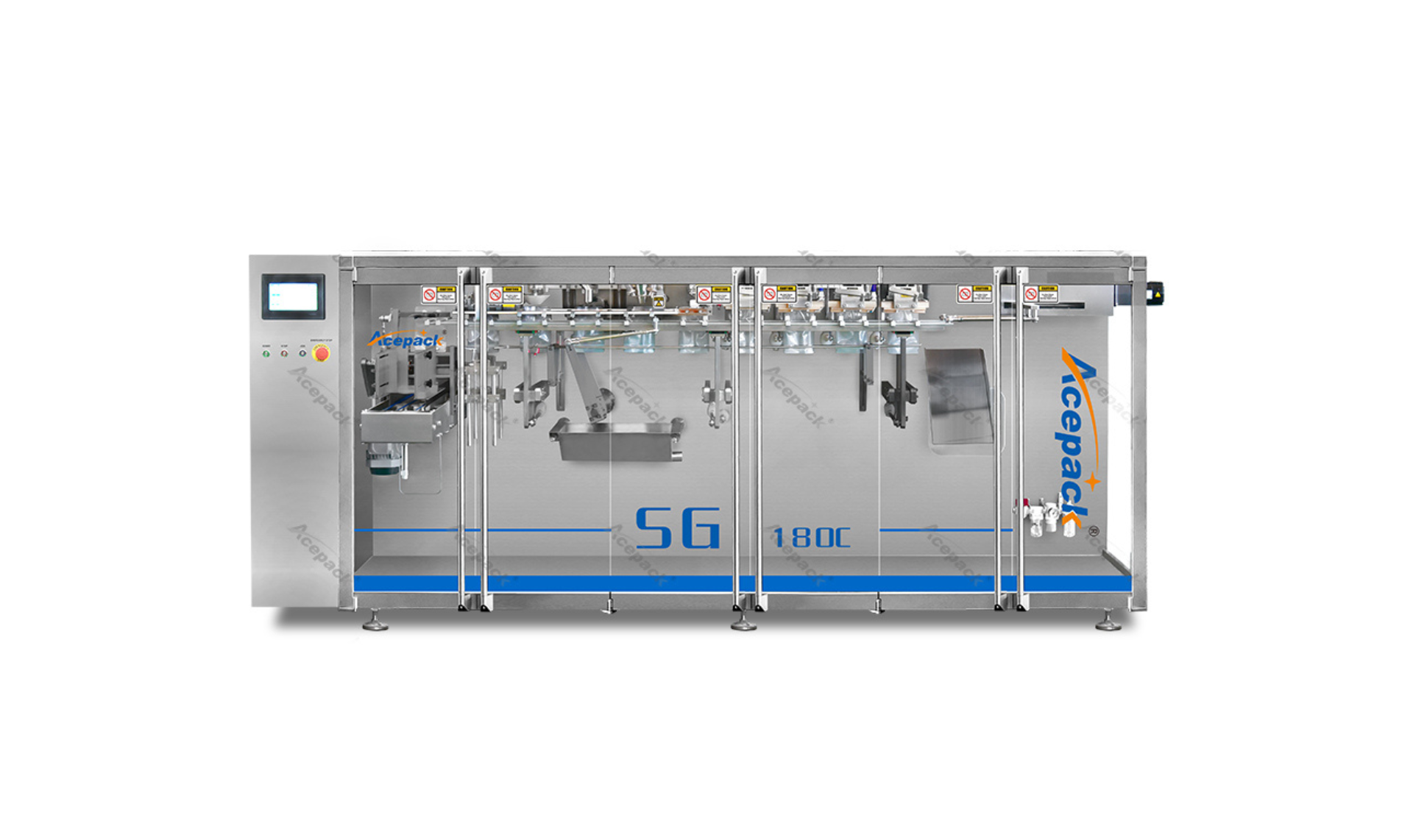

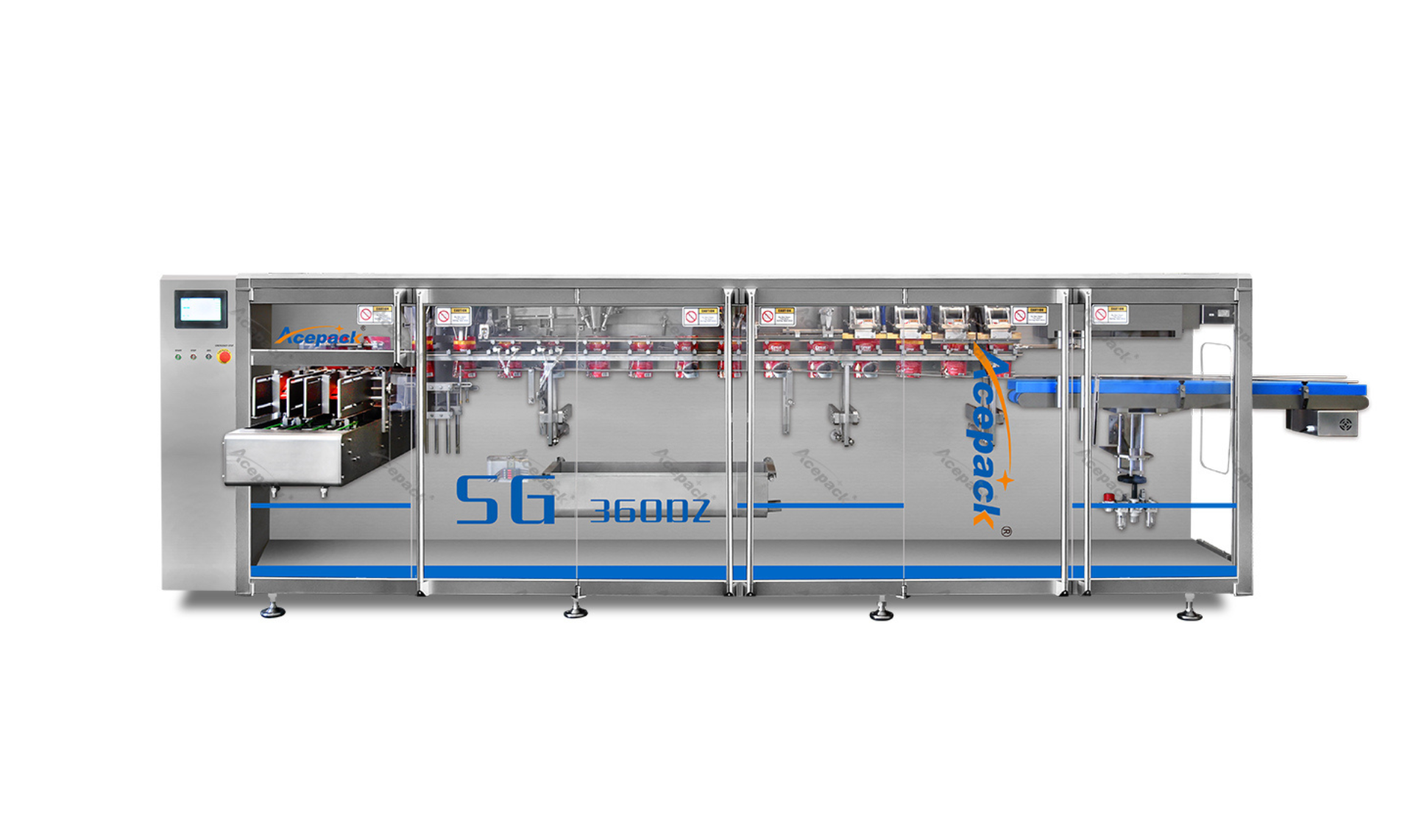

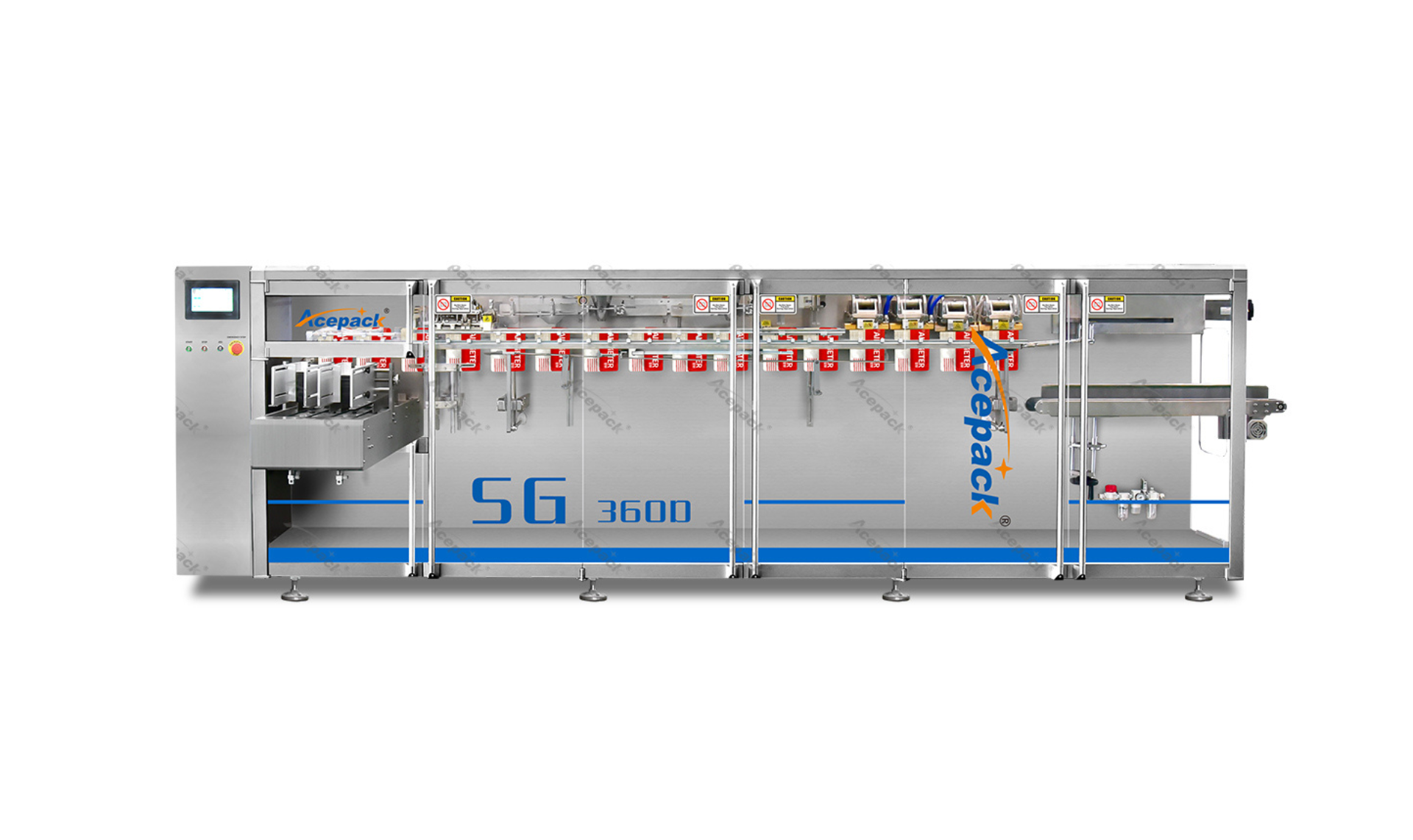

| Specification | SG-180C | SG-280Z | SG-360DZ | SG-360QB | SG-360D |
|---|---|---|---|---|---|
| Pouch Size Range (mm) | 90×120 (min) 180×310 (max) |
90×120 (min) 180×310 (max) |
110×180 (min) 280×400 (max) |
60×120 (min) 85×225 (max) |
90×120 (min) 180×310 (max) |
| Max Capacity | 1300ml | 3000ml | 1500ml | 120ml | 1500ml |
| Output Speed | 30-60 ppm | 30-60 ppm | 60-120 ppm | 160-240 ppm | 60-120 ppm |
| Power | 4.1kw | 6.6kw | 7.5kw | 3.6kw | 7kw |
| Air Consumption | 300NL/min | 400NL/min | 400NL/min | 400NL/min | 400NL/min |
Frequently Asked Questions
What is the standard lead time for your machines?
Our standard lead time is 45 to 60 working days after order confirmation and receipt of the deposit. Custom configurations or fully automated turnkey lines may require 60 to 90 days depending on the complexity of the dosing and secondary packaging systems.
Do you provide overseas installation and training?
Yes! Acepack has exported to over 60 countries. We offer comprehensive English manuals and video tutorials. Additionally, we can dispatch our skilled engineers to your factory for on-site installation, commissioning, and staff training (travel and accommodation costs apply).
What is the warranty period?
We provide a standard 12-month warranty from the date of machine installation. During this period, we supply free replacement parts for any non-human damage. We also offer lifetime online technical support and software updates.
Can your machines handle both paper and plastic film?
Yes, our sealing jaws and temperature controllers are designed to accommodate a wide range of laminated films, including PE, PET, ALU, Foil, and newly trending recyclable Kraft paper composites. We can test your specific film in our factory before shipment.
