Maximize Output with
High-Speed Sachet Tech.

Maximize production up to 60 bags/min. Perfectly handle zipper pouches and doypacks.


Full Servo Driven

Main mechanisms are driven by independent servo motors, ensuring whisper-quiet operation and perfect synchronization even at 300+ speeds.

Precision Cutting

Choose from straight cut, zig-zag cut, or customized tear notches. The high-durability alloy blades provide millions of clean cuts without jamming.

Zero-Leak Pumps

Specially designed suction-back pneumatic pumps prevent dripping when packaging ketchup, oil, or honey, keeping the sealing area perfectly clean.

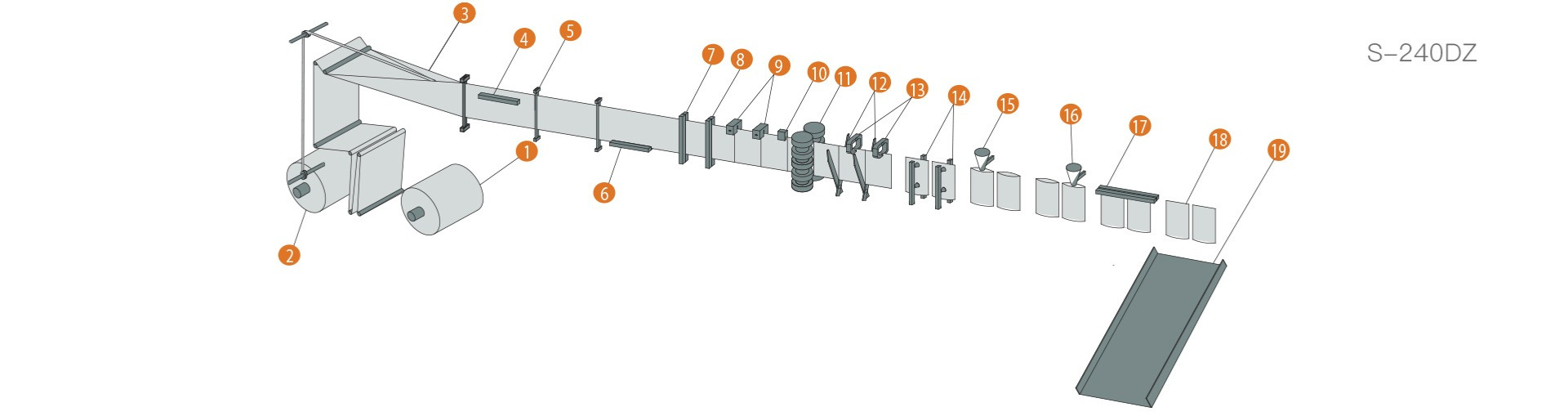

S-240DZ Flowchart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
(1) Film Unwind
(2) Zipper Mechanism
(3) Pouch Forming
(4) Zipper Seal
(5) Film Guide
(6) Bottom Seal
(7) Vertical Seal I
(8) Vertical Seal II
(9) Tear Notch
(10) Photocell
(11) Servo Advance
(12) Cutting
(13) Pouch Catching
(14) Pouch Opening
(15) Filling I
(16) Filling II
(17) Heat Sealing
(18) Finished Product
(19) Output
SpecificationHS Series (High Speed)
Seal Type3-Side, 4-Side, Stick Pack
Lane Options1 to 10+ Lanes
Film WidthUp to 600mm
Bag Length Range50mm - 200mm
Max SpeedUp to 320 cuts / min
Control SystemSiemens / Allen-Bradley PLC
❮ Swipe image to switch models ❯

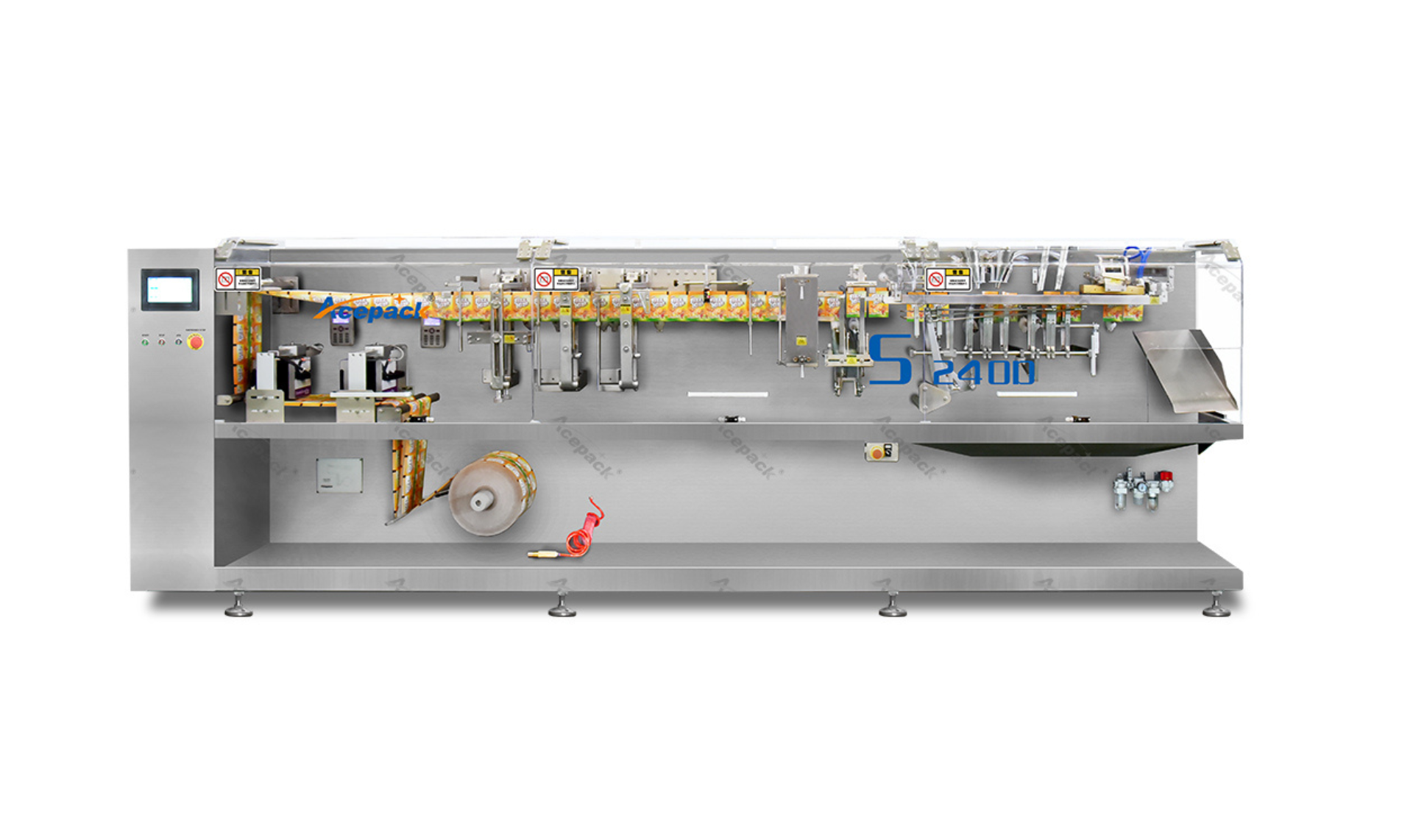

S-240D
S-240D

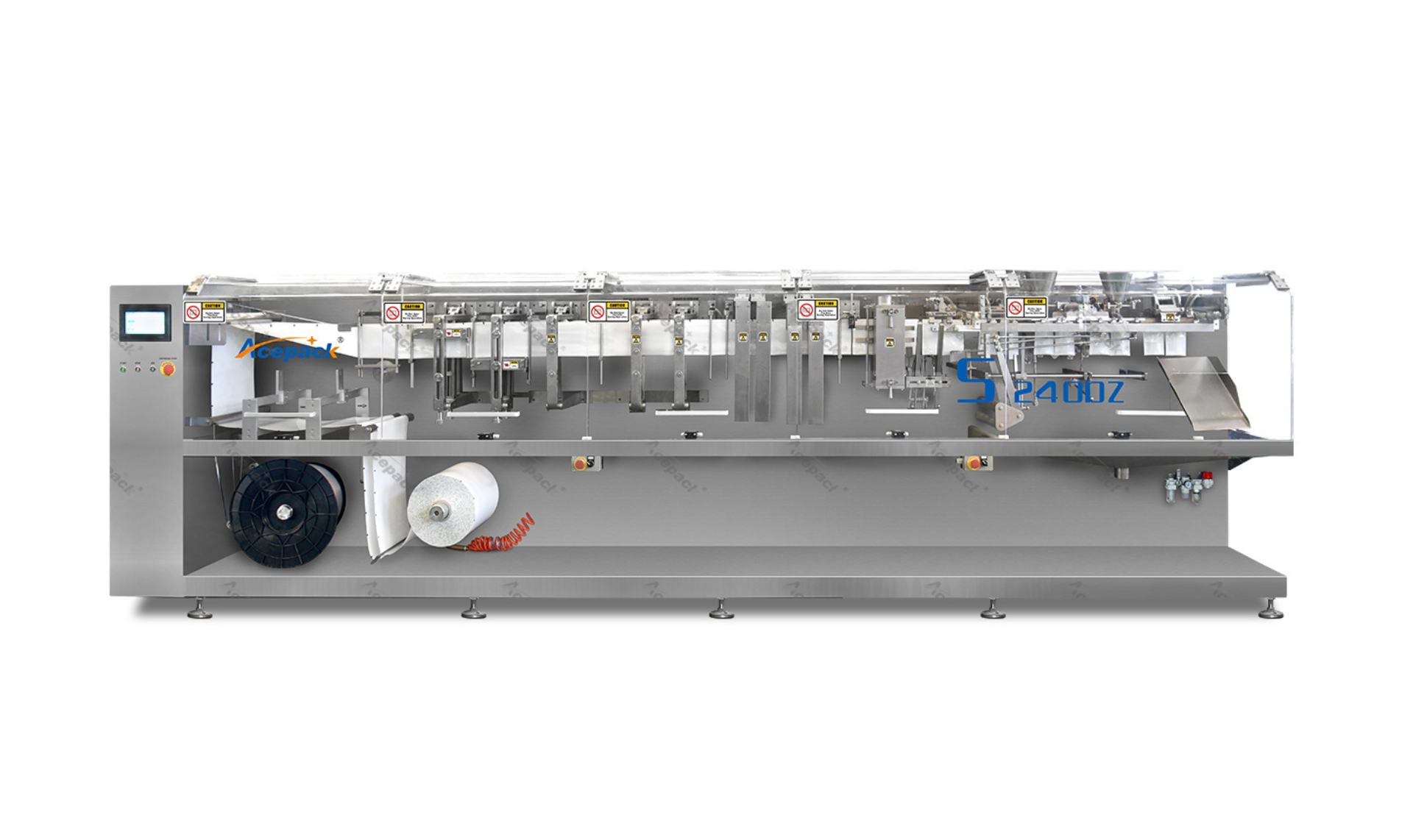

S-240DZ
S-240DZ

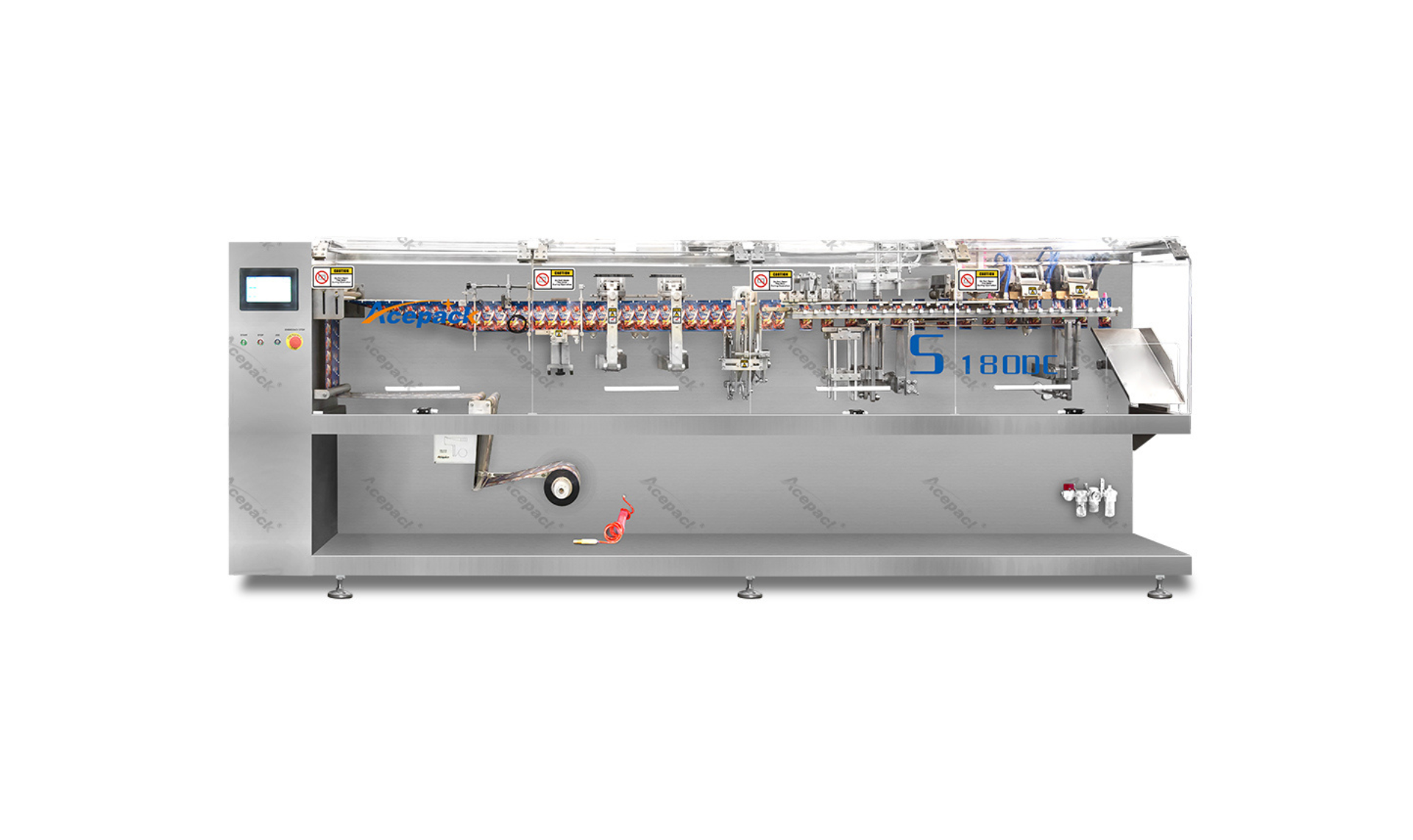

S-180DC
S-180DC

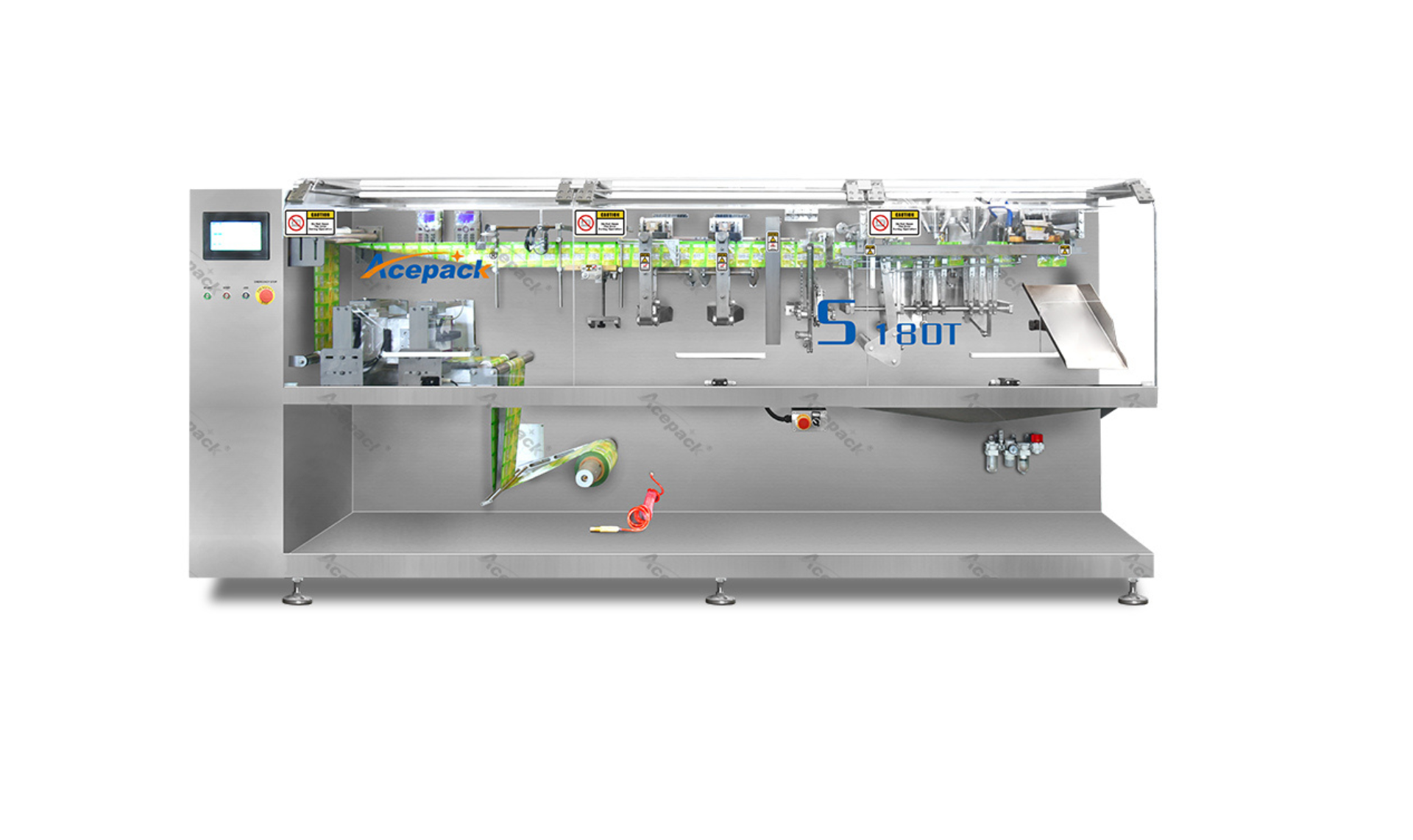

S-180T
S-180T

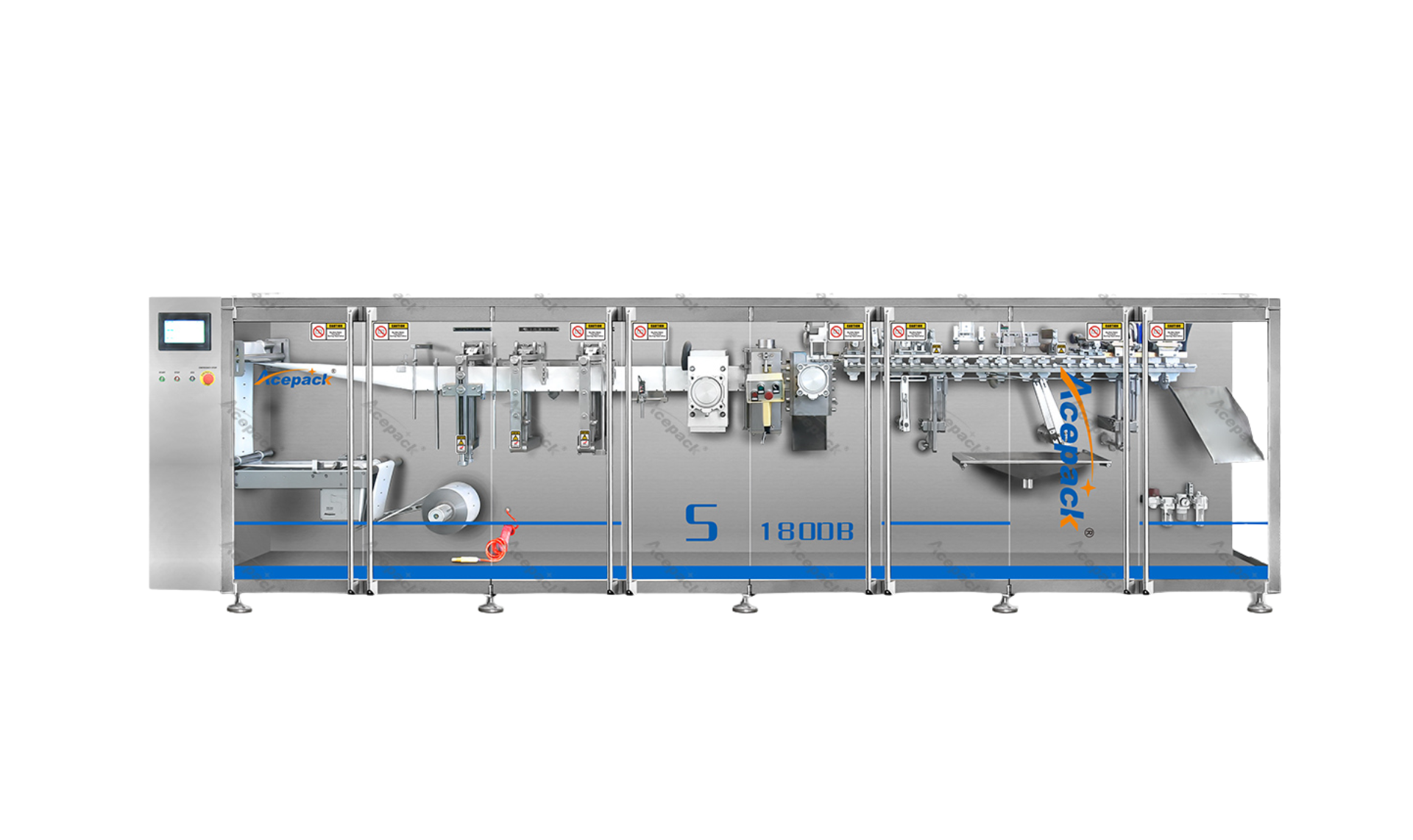

S-180DB
S-180DB
Specification S-240D S-240DZ S-180DC S-180T S-180DB
Pouch Size Range (mm) 60×80 (min)
120×225 (max)		 60×80 (min)
120×225 (max)		 60×80 (min)
90×225 (max)		 50×80 (min)
90×225 (max)		 60×120 (min)
85×225 (max)
Max Capacity 180ml 180ml 100ml 100ml 80ml
Output Speed 80-160 ppm 60-160 ppm 80-120 ppm 80-160 ppm 80-120 ppm
Power 6.7kw 8.7kw 8.2kw 5.6kw 6.8kw
Air Consumption 300NL/min 300NL/min 300NL/min 200NL/min 450NL/min
